Description
Fits select 2020–2022 Toyota Highlander models equipped with the 3.5L V6 gasoline engine, All-Wheel Drive (AWD), and UA80F Direct Shift 8-Speed Automatic Transmission.
Compatible Applications
- 2020 Toyota Highlander 3.5L V6 AWD
- 2021 Toyota Highlander 3.5L V6 AWD
- 2022 Toyota Highlander 3.5L V6 AWD
Transmission Specifications
Vehicle: Toyota Highlander
Years: 2020–2022
Engine: 3.5L V6 Gasoline
Engine Code: 2GR-FKS
Drivetrain: All-Wheel Drive / AWD
Transmission: UA80F
Transmission Type: Direct Shift 8-Speed Automatic
OEM Part Number: 30510-48720-84
Previous / Superseded Numbers: 30500-48720, 30500-0E160
Condition: Professionally Remanufactured
Warranty: Included
Toyota’s parts catalog specifically identifies 30500-0E160 and 30500-48720 as UA80F AWD assemblies, with 30510-48720-84 serving as the remanufactured replacement.
⚠️ VIN VERIFICATION REQUIRED
PLEASE SEND YOUR 17-DIGIT VIN BEFORE ORDERING.
Toyota used multiple transmission applications depending on drivetrain, engine, production date, and vehicle configuration.
The correct transmission will be verified using your:
- VIN
- Model year
- Production date
- Engine
- AWD drivetrain
- Original transmission number
- Original transmission configuration
DO NOT ORDER BASED ONLY ON YEAR, MAKE AND MODEL.
We will verify your VIN before shipment to make sure the correct UA80F AWD transmission is supplied.
✅ THIS LISTING IS FOR
2020–2022 TOYOTA HIGHLANDER
3.5L V6 GASOLINE
ALL-WHEEL DRIVE / AWD
UA80F 8-SPEED AUTOMATIC
❌ DOES NOT FIT
This listing is not intended for:
- FWD Highlander models
- Highlander Hybrid models
- 2.5L Hybrid applications
- 2023+ 2.4L turbo applications
- UA80E FWD transmissions
- Vehicles requiring a different OEM transmission number
AWD AND FWD TRANSMISSIONS ARE DIFFERENT.
The FWD Highlander uses a different transmission application. This listing is specifically for the UA80F AWD configuration.

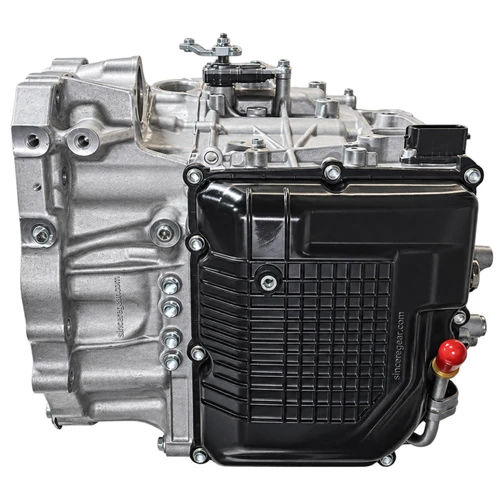

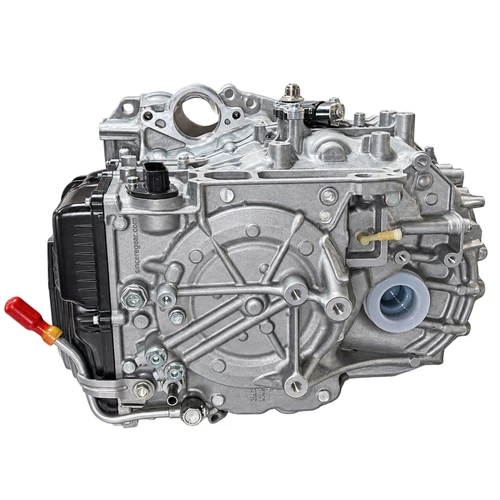

PROFESSIONALLY REMANUFACTURED UA80F TRANSMISSION
This Toyota/Aisin-based UA80F transmission is professionally remanufactured to restore reliable factory-style operation and smooth 8-speed shifting.
Remanufacturing Process
- Transmission completely disassembled
- Case thoroughly cleaned and inspected
- Internal hard parts inspected for wear or damage
- Worn components replaced
- New seals and gaskets installed
- Clutches inspected and replaced as required
- Bonded pistons inspected/replaced as required
- Bushings and bearings inspected
- Valve body inspected and serviced
- Solenoids tested
- Known UA80F wear areas addressed
- Updated components installed where applicable
- Torque converter professionally inspected/remanufactured
- Transmission professionally reassembled
- Final unit inspected and tested prior to shipment
Features
- Professionally remanufactured Toyota/Aisin transmission
- UA80F 8-Speed Automatic
- AWD-specific application
- Designed for the 3.5L 2GR-FKS V6
- Updated internal components where applicable
- Factory-style shift quality
- Direct replacement for verified applications
- Professionally inspected and tested
- Warranty included
OEM / INTERCHANGE REFERENCE
Primary OEM Number
30510-48720-84
Replaces / Supersedes
- 30500-48720
- 30500-0E160
Toyota directly lists 30510-48720-84 as a remanufactured transaxle assembly and identifies 30500-48720 as its previous version. Toyota parts catalogs also show 30500-0E160 being replaced by 30510-48720-84.
OEM numbers are provided for identification and interchange reference. Final fitment is determined by VIN verification.
⚠️ IMPORTANT INSTALLATION INFORMATION
Proper installation is required for correct transmission operation and warranty eligibility.
Installation should include:
- Correct Toyota-spec automatic transmission fluid
- Transmission cooler inspection and servicing
- Cooler-line inspection and cleaning
- Removal of contamination and metal debris
- Correct transmission fluid level procedure
- ECM/TCM initialization where required
- Transmission adaptation/relearn procedures
- Inspection of engine and transmission mounts
- Inspection of AWD drivetrain components
- Professional installation by a qualified repair facility
Failure to properly clean or service the transmission cooling system can contaminate and damage the replacement transmission.
?️ WARRANTY INCLUDED
This professionally remanufactured UA80F transmission includes warranty coverage against qualifying defects in materials and workmanship, subject to applicable warranty terms and installation requirements.
Warranty eligibility requires proper VIN verification, professional installation, correct transmission fluid, cooler service, and any required programming or relearn procedures.
⚠️ FREIGHT SHIPPING
This transmission ships by freight carrier.
Before ordering, please send:
1. Your 17-digit VIN
2. Delivery ZIP code
3. Commercial or residential delivery address
Additional charges may apply for residential delivery, liftgate service, limited-access locations, or remote delivery areas.
